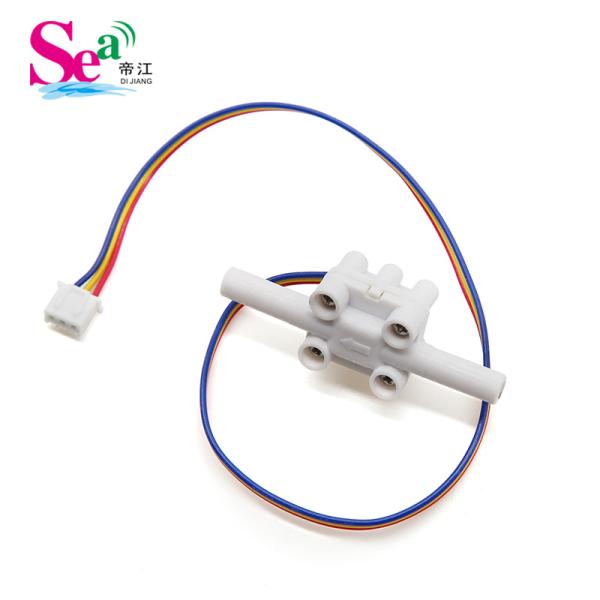

The ZJTM-05A PVDF features PVDF material and ceramic shaft, compatible with most acid/alkali liquids except hydrofluoric acid. 3/8" quick-connect for easy installation. Hall pulse output for accurate measurement. Suitable for corrosive liquid flow monitoring in chemical, pharmaceutical, water treatment, and other industrial applications.
| Parameter | Specification |
|---|---|
| Model | ZJTM-05A |
| Material | PVDF, Ceramic Shaft |
| Connection | 3/8" Quick Connect |
| Operating Voltage | DC 3.5-24V |
| Temperature | ≤60℃ |
| Pressure | ≤1.0 MPa |
| Output Signal | Hall Effect Pulse |
| Flow Rate | 0.5-8L/min (small) / 1-30L/min (large) |
| Media | Water, acid/alkali liquids (except HF) |
