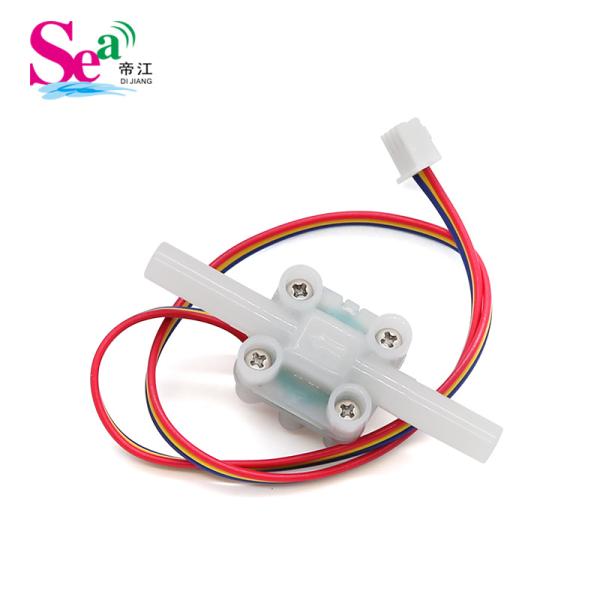

The ZJTM-05A is manufactured from PVDF engineering plastic, offering excellent chemical corrosion resistance with light weight and low cost. It features a built-in high-precision Hall sensor and turbine rotor for fast response and stable pulse signal output. The 3/8" quick-connect design ensures easy installation. Suitable for flow control and detection in coffee machines, water purifiers, drinking fountains, and other household appliances, as well as corrosive liquid flow monitoring in chemical and laboratory environments.
| Parameter | Specification |
|---|---|
| Model | ZJTM-05A |
| Material | PVDF (Polyvinylidene Fluoride) |
| Connection | 3/8" Quick Connect |
| Operating Voltage | DC 3.5~24V |
| Operating Temperature | ≤60℃ |
| Pressure Resistance | ≤1.0 MPa |
| Output Signal | Hall Effect Pulse |
| Media | Water, acid/alkali liquids (except HF) |
| Sensor Type | Hall Effect Turbine Flow Sensor |
| Wire Color | Function |
|---|---|
| Red | Power Positive (VCC) |
| Yellow | Signal Output (Pulse) |
| Black | Power Negative (GND) |
