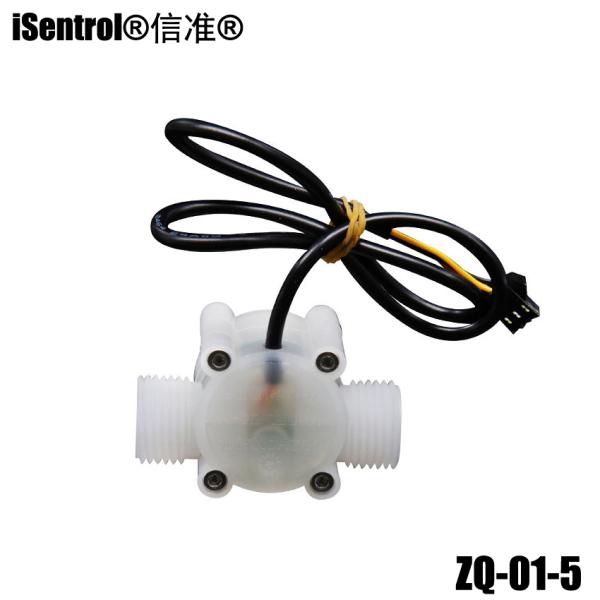

The ZQ-01 features a PVDF valve body and ceramic shaft, offering excellent acid and alkali corrosion resistance. It is compatible with most acid/alkali liquids except hydrofluoric acid. The product offers two orifice sizes with pulse signal output for easy automation system integration. Suitable for chemical, pharmaceutical, water treatment, and other corrosive liquid flow monitoring applications.
| Parameter | Specification |
|---|---|
| Model | ZQ-01 (PVDF) |
| Sealing Ring | Fluororubber (FKM) |
| Pressure Resistance | ≤1.75 MPa |
| Operating Voltage | DC 3.5~24V |
| Max Operating Current | 15mA (DC5V) |
| Load Capacity | ≤10 mA (DC 5V) |
| Humidity Range | 35%~90% RH (Non-condensing) |
| Operating Temperature | ≤80℃ |
| Output Pulse High Level | >DC 4.5V (Input DC5V) |
| Output Pulse Low Level | <DC 0.5V (Input DC5V) |
| Flow Rate (Large Orifice) | 1 - 30L/min ±5% |
| Flow Rate (Small Orifice) | 0.5 - 8L/min ±5% |
| Pulse Characteristic (Large) | (HZ)=[4.3*Q]±5% (Horizontal test), 258 pulses/L |
| Pulse Characteristic (Small) | (HZ)=[13*Q]±5% (Horizontal test), 780 pulses/L |
| Material | PVDF, Ceramic Shaft |
| Weight | 0.1 kg |
Compatible with most acid/alkali liquids except hydrofluoric acid.
Please consult customer service before ordering. Corrosion damage due to unverified chemical concentrations will void warranty.
Select appropriate model based on actual medium concentration.
